Bosch Sensortec
Extended full-scale range. Exceptional vibration robustness. Industry-leading low noise.

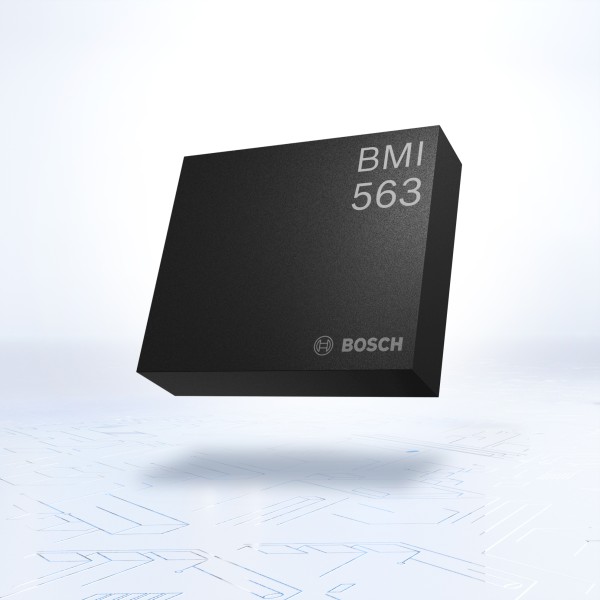

Inertial Measurement Unit: BMI563

Engineered for robotics and XR controllers, the BMI563 combines high-performance, stability, and real-time responsiveness to unlock next-level precision in every movement.


The BMI563 delivers unparalleled motion tracking with ultra-low noise and exceptional vibration robustness, ensuring precise data acquisition even during the most dynamic robotic movements. With twice the full-scale range of the previous generation, it captures every subtle change in orientation and position, leaving nothing unnoticed.


A programmable Edge-AI classification engine supports always-on functionality by analyzing motion patterns directly on the sensor, reducing system power consumption and accelerating customer-specific use cases.


  • Full-scale range: ±4.000 dps & ±32 g
  • Vibration robustness from 0 to 40 kHz up to MHz range
  • Noise: 50µg/√Hz & < 3 mdps/√Hz)

If you are interested in BMI563, please use our contact form.


Samples are now available for direct customers. The complete product line is planned to enter high-volume production from Q3 2026 onwards.

The platform for limitless innovation

The BMI5 family is designed to make premium devices smarter, more precise, and incredibly intuitive. Built on a common, high-performance hardware foundation, the platform adapts effortlessly across applications through intelligent software. Simply put, the U in IMU stands for “Ultra”.

Inertial SLAM

AR/VR/MR motion

Auto tagging in action cams

Technical data

Package dimensions
2.5 x 3.0 x 0.75 mm³ LGA
Digital resolution
Accelerometer (A): 16 & 24-bit
Gyroscope (G): 16 & 24-bit
Measurement ranges
(A): ±2, ±4, ±8, ±16, ±32 g
(G): ±125, ±250, ±500, ±1000,
±2000, ±4000 °/s
Output data rates (selectable)
(A): 1.56 Hz ... 6.4 kHz
(G): 12.5 Hz … 12.8 kHz
Offset (soldered on PCB)
(A): ± 10 mg
(G): ± 0.5 °/s
Offset drift vs. temperature (TCO)
(A): ± 0.07 mg/K
(G): ± 0.003 °/s/K
Sensitivity error (soldered on PCB)
(A): 0.1%
(G): 0.3%
Noise density (typ.)
(A): < 50 µg/√Hz (≤8g)
< 60 µg/√Hz (16g)
(G): < 0.003 °/s /√Hz
Current consumption
(A+G combo @ max. ODR)
650 µA for typ. operation
Current consumption
(A+G combo @ 100 Hz ODR)
250 µA for low-power operation
Current consumption
(A+G combo @ suspend mode)
3 µA for suspend operation
Interface
primary MIPI I³C®, I²C, SPI
2 Interrupt Pins (I²C, I³C)
1 Interrupt Pin (3-wire SPI)
secondary AUX I²C controller
secondary OIS MIPI I³C®, I²C, SPI
Power modes
High performance-, normal-,
several low power-, standby- and
suspend mode
FIFO
8 KB on-chip FIFO data buffer
Temperature range
-40 … +85 °C
Supply voltage
VDD range 1.71 ... 3.6 V
VDDIO range 1.08 ... 3.6 V

Documents

BST-BMI560-FL000

Flyer

BST-BMI560-FL000

Download
