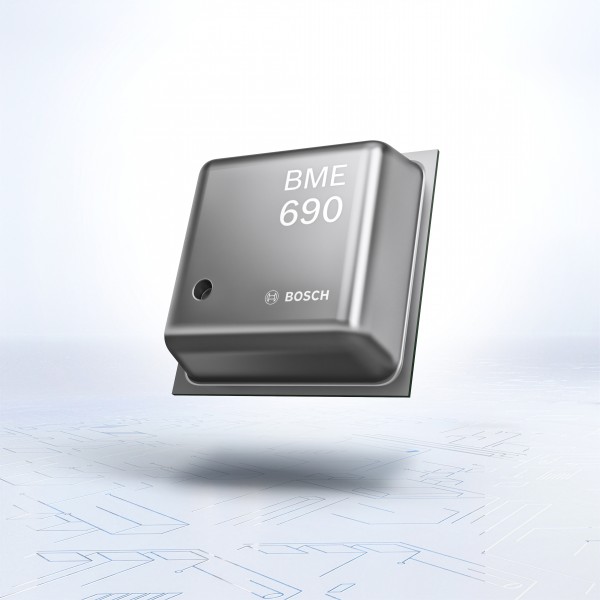

Name: BME690
Brand: Bosch Sensortec
SKU: 0 273 017 048

The BME690 is the world's smallest 4-in-1 air quality sensor for monitoring indoor air quality and can detect Volatile Organic Compounds (VOCs), Volatile Sulfur Compounds (VSCs) and other gases. The BME690 is further developed on BME688, with increased robustness for use in environments with high condensation levels.

Standardizability
Robustness
Power-efficient

Order
	Out of Stock	0 pieces	Not available
	Out of Stock	0 pieces	Not available
	Out of Stock	0 pieces	Not available
	Out of Stock	0 pieces	Not available
	Out of Stock	0 pieces	Not available

Order now

Alignment to WELL/RESET standards for indoor air quality

Usage in high condensation use cases

Reduced power consumption optimal for battery operated devices

Technical data

Package dimensions

3.0 x 3.0 x 0.93 mm³
8-Pin LGA with metal

Operation range (full accuracy)

Pressure: 300...1100 hPa
Humidity 0…100%
Temperature: -40…85°C

Supply voltage VDDIO
Supply voltage VDD

1.2 ... 3.6 V
1.71 ... 3.6 V

Interface

I²C (up to 3.4 MHz) and SPI (3 and 4 wire, up to 10 MHz)

Average typical current consumption

2.2 µA at 1 Hz for h/T
3.1 µA at 1 Hz for p/T
4.2 µA at 1 Hz for h/p/T

50 µA at ULP mode for p/h/T/air quality
0.5 mA at LP mode for p/h/T/air quality
3.1 mA in standard gas scan mode

Gas sensor

Sensor-to-sensor deviation (IAQ)
IAQ Operating modes

Major sensor outputs

± 15% ± 15 IAQ
3 sec (LP) and 300 sec (ULP)

Index for Air Quality (IAQ), bVOC- & CO2-equivalents (ppm)

Humidity sensor
Response time
Accuracy tolerance
Hysteresis

1 s (τ0-63%)
± 3 % relative humidity
± 1 % relative humidity

Pressure sensor
Relative Accuracy
Absolute Accuracy
Temperature coefficient offset

± 0.05 hPa
± 0.5 hPa
±1.3 Pa/K (equiv. to ±10.9 cm at 1°C temperature change)

Temperature sensor
Absolute accuracy

±0.5 °C (0-65°C)

Documents

Flyer

BST-BME690-FL000

Download

Datasheet

BST-BME690-DS001

Dowload

Shuttle board 3.0 flyer

BST-BME690-SF000

Download

8x Shuttle board 3.0 flyer

BST-BME690-SF001

Download

BME690 Handling, soldering and mounting instruction

Handling, soldering & mounting instruction

BST-BME690-HS000

Media

Shipment & packaging details

BST-BME690-SP000

Media

Software

BME690 Software

Download

Applications and solutions

Woman and man chatting with each other while looking in the smartphone

Smart home

Imagine you get up on a cold day and the bathroom is heated the way you prefer it. When you leave home, sensor-activated intrusion detection gives you peace of mind during the day. Our sensing solutions enable many smart home applications, enhancing your well-being.

Find out more

Woman doing sports using hearables and smartwatch

Wearables

Smartwatches, wristbands and smart clothes: whether supporting your fitness through calorie counting or helping you orient yourself though navigation, our accurate and ultra-low power sensing solutions turn a regular wearable into your daily companion!

Find out more

A busy street from the bird eye of view.

Air quality mapping

Air quality mapping – Breathe the best air and avoid pollution hotspots!

Air quality mapping is the process of measuring and visualizing the concentration of various pollutants in the air across different locations. This technique helps identify pollution hotspots, track changes in air quality over time, and assess the effectiveness of environmental policies. Our innovative and tiny sensors, BMV080 and BME690, deployed in various locations, can gather detailed information about both particulate matter and gaseous pollutants, enabling accurate air quality mapping. This way you can make informed decisions to improve your health. The collected data can also be used to improve environmental conditions and fostering a healthier environment for communities.

Learn more about our Sensing Solutions that enable Air quality mapping:

4-in-1 gas sensor BME690

PM2.5 air quality sensor BMV080

A person looking into the fridge to check out the freshness of the food items.

Food freshness

Food Freshness – Ensure Quality and Condition of your Food

Food freshness detection helps you track the quality and condition of your food, ensuring that it stays fresh, nutritious, and safe to eat. With our advanced sensors and technology, you can measure critical factors like temperature, humidity, and gas emissions that influence food quality during storage and transport. Maintaining optimal food freshness is essential for preserving taste, texture, and nutritional value, while also reducing the risk of foodborne illnesses and preventing food wastage though the timely detection of spoilage. By using real-time monitoring, you can ensure that your food stays at the ideal conditions to maximize its freshness and extend its shelf life. Food freshness detection provides actionable insights that help you make informed decisions, prevent spoilage, and reduce waste.

Learn more about our Sensing Solutions that enable Food Freshness Detection:

4-in-1 gas sensor BME690

Other gas sensors

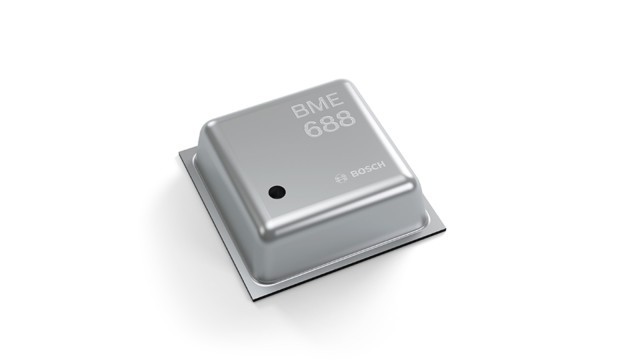

BME688

The BME688 is the first gas sensor with Artificial Intelligence (AI) and integrated high-linearity and high-accuracy pressure, humidity and temperature sensors.

More information

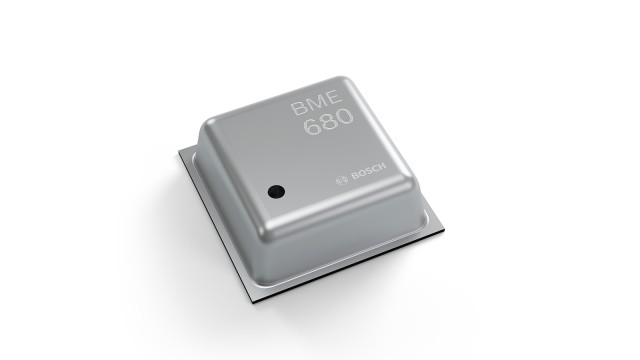

BME680

The BME680 is an integrated environmental sensor developed specifically for mobile applications and wearables where size and low power consumption are key requirements.

More information

More sensors

Do you want to find out more about the product?

Connect with our community of developers, share your expertise, and discover the latest in sensor technology. Join the Bosch Sensortec community now and access exclusive resources, insights, and discussionsConnect with our community of developers, share your expertise, and discover the latest in sensor technology. Join the Bosch Sensortec community now and access exklusive resources, insights and discussions.

Bosch Sensortec Community

FAQs for the BME690

What applications is the BME690 designed for?

The BME690 is designed for applications such as indoor air-quality monitoring, odor and bad-smell detection, detection of unusual gases, spoiled-food detection, smart-home devices and wildfire detection.

Can the BME690 distinguish between different gases?

The BME690 uses a configurable gas-scanning approach combined with AI-based software to classify different gas compositions. Selectivity is achieved by operating the gas-sensitive layer at different temperatures to create characteristic gas fingerprints.

Can developers train the BME690 for custom gas-detection applications?

Yes. Bosch BME AI-Studio can be used to develop, verify and deploy custom gas classification and regression use cases for the BME690.

Which software is used with the BME690?

The BME690 can be used with the Bosch sensor API for raw sensor access and BSEC for fused outputs, gas classification and environmental processing.

Is the BME690 suitable for battery-powered devices?

Yes. BSEC provides an ultra-low-power mode specifically intended for battery-powered or intermittently operated devices over extended periods.
