技术数据
封装尺寸(典型值)

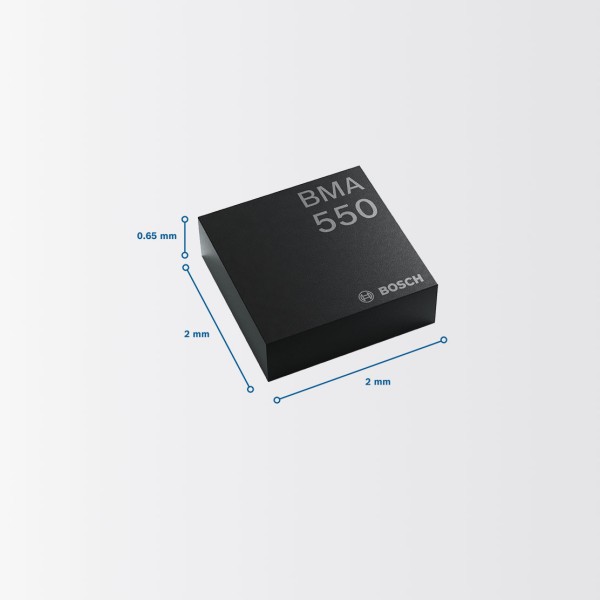

2 x 2 x 0.65 mm³
数字分辨率
16位
供电电压VDDIO
电源电压VDD
电源电压VDD
1.08 … 3.6 V
1.71 … 3.6 V
1.71 … 3.6 V
接口
TDM接口 + I2C
输出数据传输速率
高达48 kHz
带宽
50 Hz … 2350 Hz
噪声(低噪声模式)
1.2 mg-rma @2350 Hz BW
总谐波失真 + 噪声
0.25%
功耗
低噪声模式下为290 µA
低功耗模式下为104 µA
低功耗模式下为104 µA
FIFO
1kb
中断
FIFO + 语音活动检测
