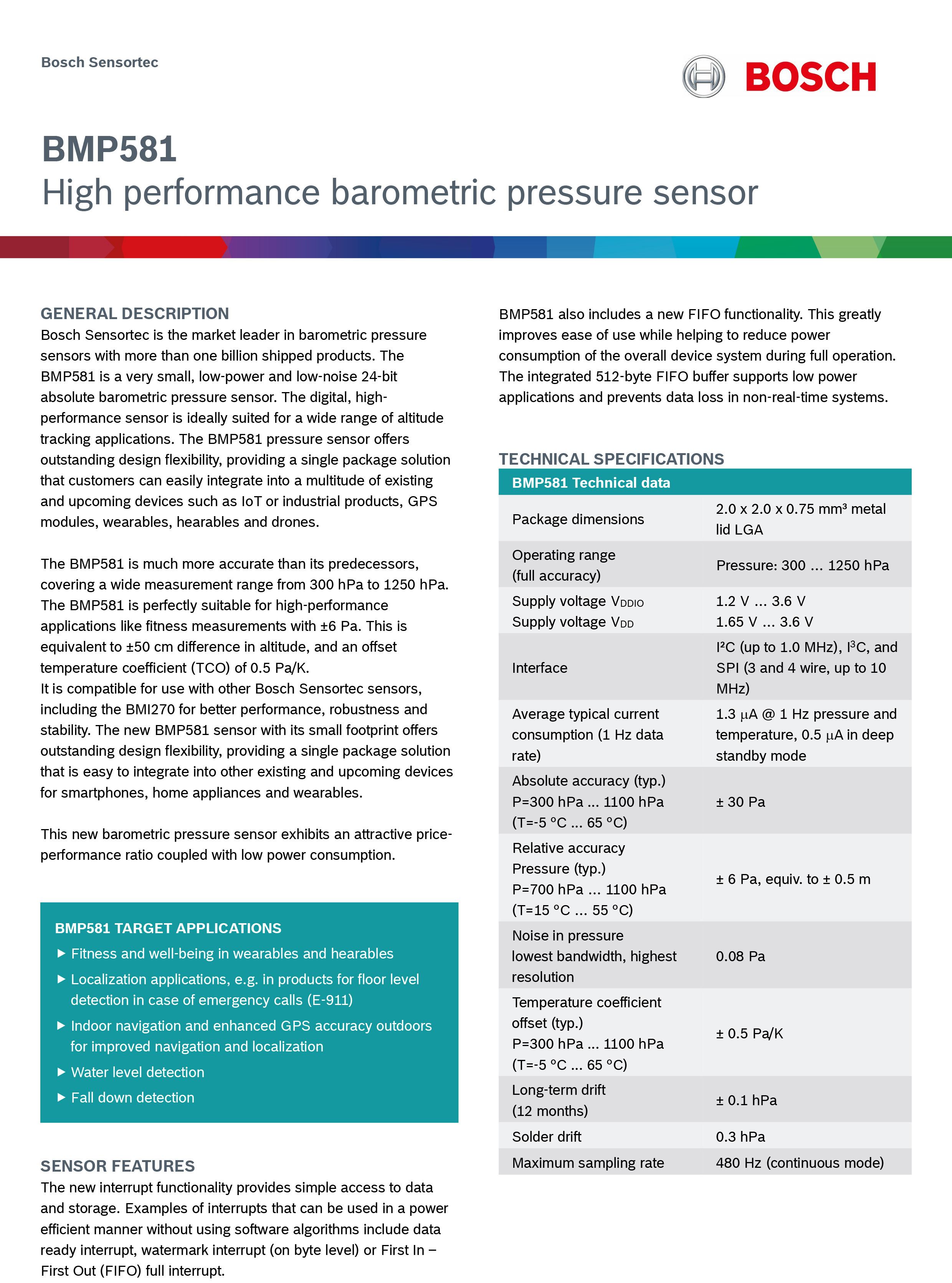

高性能气压传感器#BMP581
技术数据

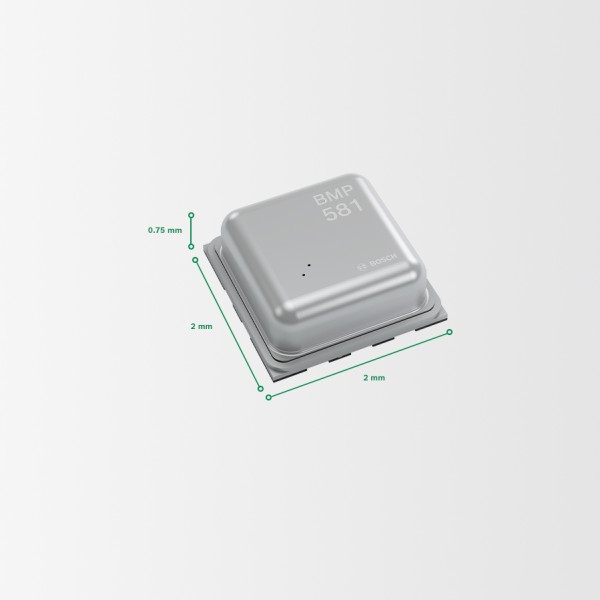

封装尺寸
2.0 x 2.0 x 0.75 mm³金属盖LGA
运行范围
(全精度)
(全精度)
压力:300 … 1250 hPa
供电电压VDDIO
1.08 V … 3.6 V
电源电压VDD
1.65 V … 3.6 V
接口
I²C(高达1.0 MHz)、I3C和SPI(3线和4线,高达10 MHz)
平均电流消耗典型值(1 Hz数据速率)
1 Hz压力和温度下为1.3 µA,深度待机模式下为0.5 µA
绝对精度
P=300 ...1100 hPa
(T=-5 … 65°C)
P=300 ...1100 hPa
(T=-5 … 65°C)
± 30 Pa
相对精度
压力(典型值)
P=700…1100 hPa
(T=15 … 55°C)
压力(典型值)
P=700…1100 hPa
(T=15 … 55°C)
± 6 Pa
(相当于±0.5 m)
压力噪声
最低带宽,最高分辨率
最低带宽,最高分辨率
± 0.08 Pa
温度系数偏移(典型值)
P=300 hPa ...1100 hPa
(T=-5 ...65°C)
P=300 hPa ...1100 hPa
(T=-5 ...65°C)
± 0.5 Pa/K
长期漂移
(12个月)
(12个月)
±0.1 hPa
焊接偏移
±0.3 hPa
最大采样率
480 Hz(连续模式)
