Bosch Sensortec
Highest performance. Small size. Accurate.

Pressure sensor BMP580

The BMP580 is the new benchmark in the field of barometric pressure sensors and impresses with its enormous accuracy. This enables endless and new use cases such as fitness tracking where accurate altitude change is key. This sensor is available for our direct customers only.

  • Low-power consumption
  • Low noise
  • Small size

available soon

Fitness applications

Indoor localization

Indoor navigation

Fall detection

Technical Data

Absolute accuracy (typ.)
P=300 hPa...1100 hPa
(T=-5°C...65°C)

±0.30 hPa
Relative accuracy (typ.)
P=700 hPa...1100 hPa
(T=15°C...55°C)

±0.06 hPa
(equivalent to ±50cm)
Temperature coefficient offset (typ.)
P=300 hPa...1100 hPa
(T=-5°C...65°C)

±0.05 Pa/K
Long-term drift (typ.)
(12 months)
±0.1 hPa
Maximum samppling rate
480 Hz (continuous mode)
Interface
I²C, I³C and SPI
RMS noise in pressure (typ.)
lowest bandwidth, highest resolution
0.08 Pa
Average typical current consumption
1.3 µA at 1 Hz data rate
Dimensions
10-pin LGA with metal lid
2 x 2 x 0.75 mm³

Applications and solutions

Other pressure sensors

BMP384

BMP384

The BMP384 has a gel-filled cavity that allows higher robustness against water, liquids and other chemicals if the applicable integration concept is used. The BMP384 with its small footprint offers outstanding design flexibility, providing a single package solution that is easy to integrate into other existing and upcoming devices for smart homes, industrial products and wearables.
More information

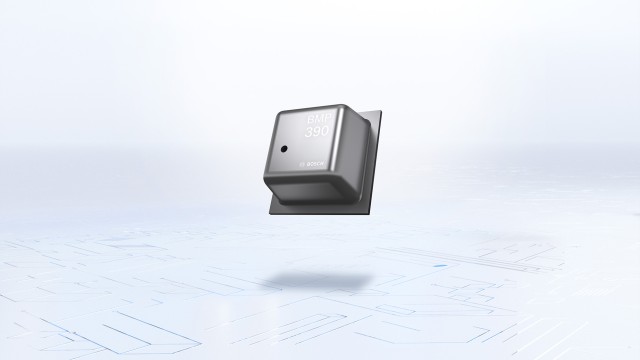

BMP390L

BMP390

The BMP390 is a very small, low-power and low-noise 24-bit absolute barometric pressure sensor. The digital, high-performance sensor is ideally suited for a wide range of altitude tracking applications, such as smartphones, GPS modules, wearables, hearables and drones.
More information
BMP585

BMP585

With BMP585, customers don’t need to sacrifice performance to achieve robustness – there’s no compromise necessary. With its extreme accuracy, the sensor measures a change in height of just a few centimeters. At the same time, users do not have to worry about environmental conditions - thanks to its ruggedness.
More information
More sensors
