Bosch Sensortec

Inertial Measurement Unit: BMI330

Operates up to 105°C. Efficient. Easy to integrate.

BMI330

IMU combining accelerometer and gyroscope

Reliable in heat, efficient in power – the ultimate IMU. This sensing solution combines a high-precision accelerometer with a self-calibrating gyroscope, making it ideal for navigation, robotics, and industrial or agricultural applications. It operates in temperatures up to 105°C.This 6-axis IMU combines a 16-bit accelerometer and a self-calibrating 16-bit gyroscope in a 2.5 mm x 3 mm LGA package and is Pin2pin compatible with other Bosch Sensortec IMUs.The embedded feature sets and built-in power management unit (PMU) allow high performance at low power consumption.

Technical data

Parameter Technical data
Parameter

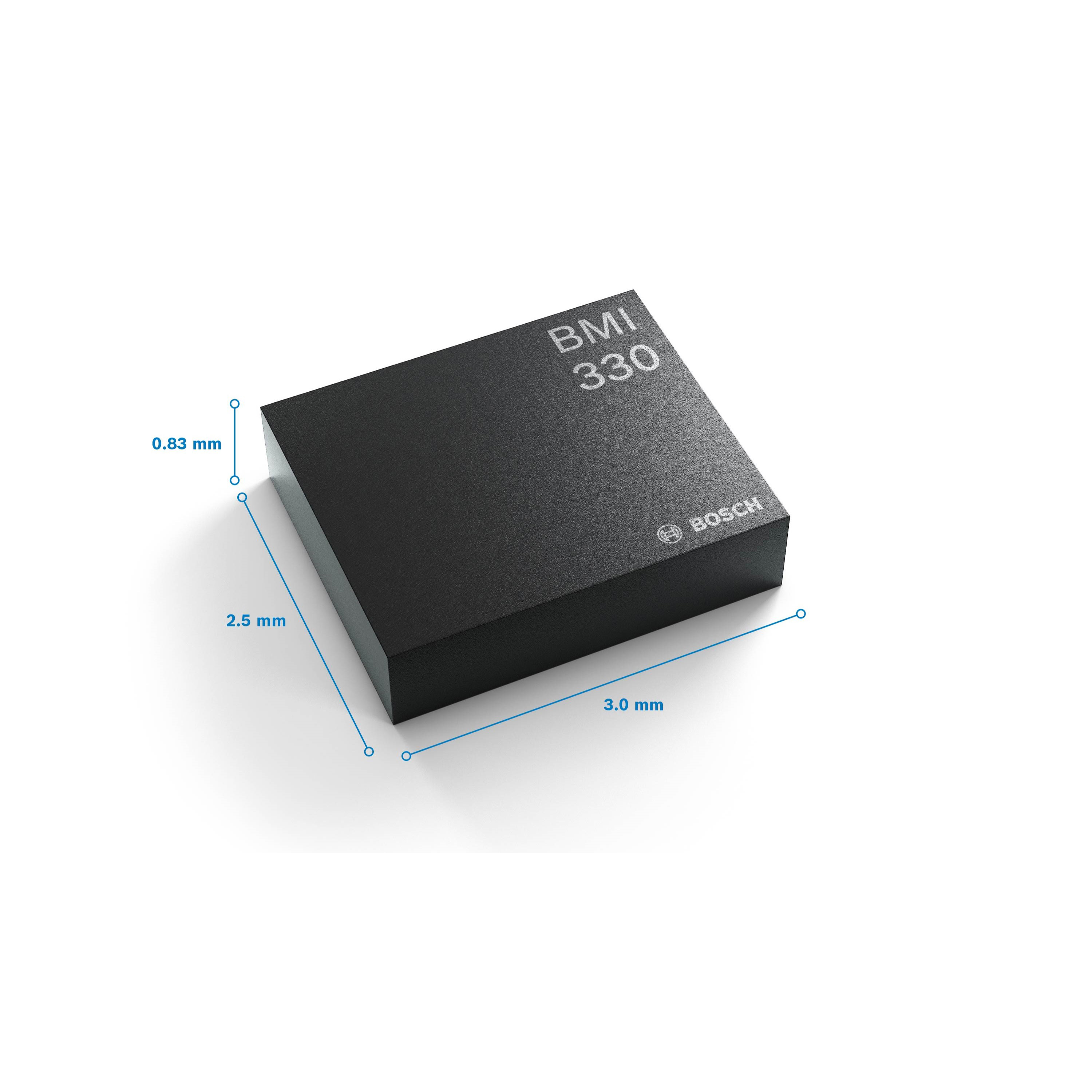

Package dimensions (typ.)
Technical data
2.5 x 3.0 x 0.83mm³
Parameter
Digital resolution
Technical data
Accelerometer (A): 16-bit
Gyroscope (G): 16-bit
Parameter
Measurement range
Technical data
(A): ±2, ±4, ±8, ±16 g
(G): ±125°/s, ±250°/s, ±500°/s, ±1000°/s, ±2000°/s
Parameter
Output data rates (selectable)
Technical data
12.5 Hz ... 6.4 kHz
Parameter
Offset soldered, over life
Technical data
(A): ± 50 mg
(G): ± 1 °/s
Parameter
TCO
Technical data
(A): ± 0.3 mg/K
(G): ± 0.01 °/s/K (-10°C to +85°C)
± 0.02 °/s/K (-40°C to <-10°C
and from >85°C to 105°C)
Parameter
Sensitivity Error
Technical data
(A): 0.5%
(G): 0.7% (with CRT)
Parameter
Noise density (typ.)
Technical data
(A): 180 µg/√Hz
(G): 0.007 °/s/√Hz
Parameter
Current consumption (high performance mode, A+G )
Technical data
790 µA
Parameter
Current consumption (low power mode, A+G)
Technical data
390 µA
Parameter
Current consumption (suspend mode, A+G)
Technical data
15 µA
Parameter
Interface
Technical data
I³C, I²C and SPI
2 Interrupt Pins (I²C, I³C)
1 Interrupt Pin (3-wire SPI)
Parameter
Power modes
Technical data
High perf. mode, normal mode, low power mode (LPM), suspend mode
Parameter
FIFO
Technical data
2 KB on-chip FIFO data buffer
Parameter
Temperature range
Technical data
-40 … +105 °C
Parameter
Supply voltage
Technical data
1.71 ... 3.63 V (VDD)
1.08 ... 3.63 V (VDDIO)
Parameter
Interrupts
Technical data
motion detection
step detector
plug ’n’ play step counter
orientation and flat detection
single/double/triple tap detection
generic interrupts
