Gas sensor BME680

4-in-1. Ultra-low power. BSEC software included.

BME680

Gas sensor measuring relative humidity, barometric pressure, ambient temperature and gas (VOC).

The BME680 is the first gas sensor that integrates high-linearity and high-accuracy gas, pressure, humidity and temperature sensors. It is especially developed for mobile applications and wearables where size and low power consumption are critical requirements. The BME680 guarantees - depending on the specific operating mode - optimized consumption, long-term stability and high EMC robustness. In order to measure air quality for personal wellbeing the gas sensor within the BME680 can detect a broad range of gases such as volatile organic compounds (VOC).

Possible use cases:

  • Personal air quality tracker
  • Air quality mapping
  • Air quality inside cars & public transport
  • Enhanced context awareness
  • Accurate step & calorie tracker
  • Quick GPS-fix & improved navigation
  • Indicator of too high / low humidity
  • Air quality & well-being indicator
  • Sleep / recovery tracker
  • Weather trend
  • Stair counter
  • Floor level detection

Technical data

Parameter Technical data
Parameter
Package dimensions
Technical data
8-Pin LGA with metal
3.0 x 3.0 x 0.93 mm³
Parameter
Operation range (full accuracy)
Technical data
Pressure: 300...1100 hPa
Humidity 0…100%
Temperature: -40…85°C
Parameter
Supply voltage VDDIO
Supply voltage VDD
Technical data
1.2 ... 3.6 V
1.71 ... 3.6 V
Parameter
Interface
Technical data
I²C and SPI
Parameter
Average current consumption
(1Hz data refresh rate))
Average current consumption in sleep mode
Technical data
2.1 µA at 1 Hz humidity and temperature
3.1 µA at 1 Hz pressure and temperature
3.7 µA at 1 Hz humidity, pressure and temperature
0.09‒12 mA for p/h/T/gas depending on operation mode
Parameter
Gas sensor
Response time (τ 33-63%)
Sensor-to-sensor deviation
Power consumption
Output data processing
Technical data

< 1 s (for new sensors)
+/- 15% +/- 15
< 0.1 mA in ultra-low power mode
direct output of IAQ: Index for Air Quality
Parameter
Humidity sensor
Response time (τ0-63%)
Accuracy tolerance
Hysteresis
Technical data

8 s
± 3 % relative humidity
≤ 1.5 % relative humidity
Parameter
Pressure sensor
RMS Noise
Sensitivity Error
Temperature coefficient offset
Technical data

0.12 Pa (equiv. to 1.7 cm)
± 0.25 % (equiv. to 1 m at 400 m height change)
±1.3 Pa/K (equiv. to ±10.9 cm at 1°C temperature change)
RoHS compliant, halogen-free, MSL1

Order

Documents

Download white paper


To receive the white paper, enter your contact details so that we can send you a download link.

Download white paper


To receive the white paper, enter your contact details so that we can send you a download link.

Download white paper


To receive the white paper, enter your contact details so that we can send you a download link.

Download white paper


To receive the white paper, enter your contact details so that we can send you a download link.

Download white paper


To receive the white paper, enter your contact details so that we can send you a download link.

Download white paper


To receive the white paper, enter your contact details so that we can send you a download link.

Software

Download white paper


To receive the white paper, enter your contact details so that we can send you a download link.

Download white paper


To receive the white paper, enter your contact details so that we can send you a download link.

Download white paper


To receive the white paper, enter your contact details so that we can send you a download link.

Tools

Download white paper


To receive the white paper, enter your contact details so that we can send you a download link.

Download white paper


To receive the white paper, enter your contact details so that we can send you a download link.

Download white paper


To receive the white paper, enter your contact details so that we can send you a download link.

Download white paper


To receive the white paper, enter your contact details so that we can send you a download link.

Download white paper


To receive the white paper, enter your contact details so that we can send you a download link.

Download white paper


To receive the white paper, enter your contact details so that we can send you a download link.

Download white paper


To receive the white paper, enter your contact details so that we can send you a download link.

Download white paper


To receive the white paper, enter your contact details so that we can send you a download link.

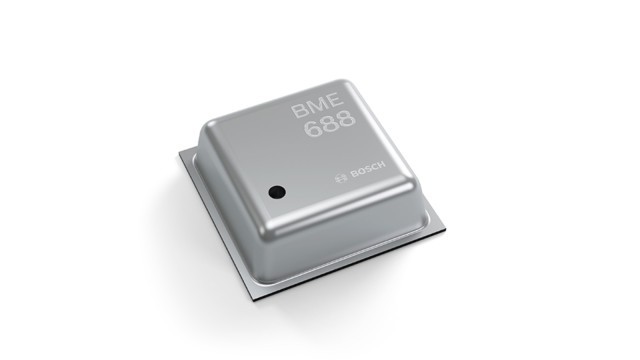

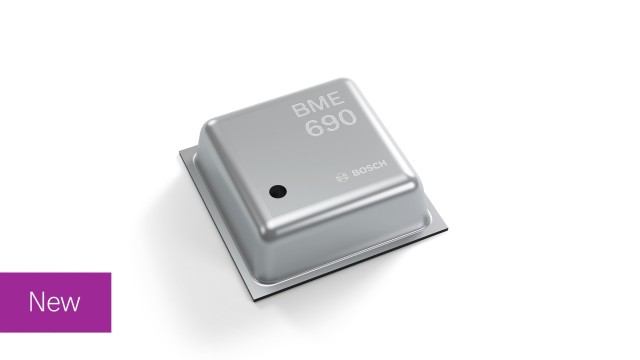

Reference products
