Application board 3.0

Sensor evaluation board.

The application board 3.0 is a versatile and sensor independent development platform, enabling a fast and easy experience with Bosch Sensortec’s sensors. As shuttle boards 3.0, a wide variety of Bosch Sensortec’s sensors can be plugged into the application board’s shuttle board socket. The combination of the application board 3.0 and shuttle board 3.0 can be used to evaluate the sensors and build prototypes to test use cases. The application board is a closed system that can be used to configure sensor parameters and to plot and log the resulting sensor readings by means of PC based software (Desktop Development) and COINES.

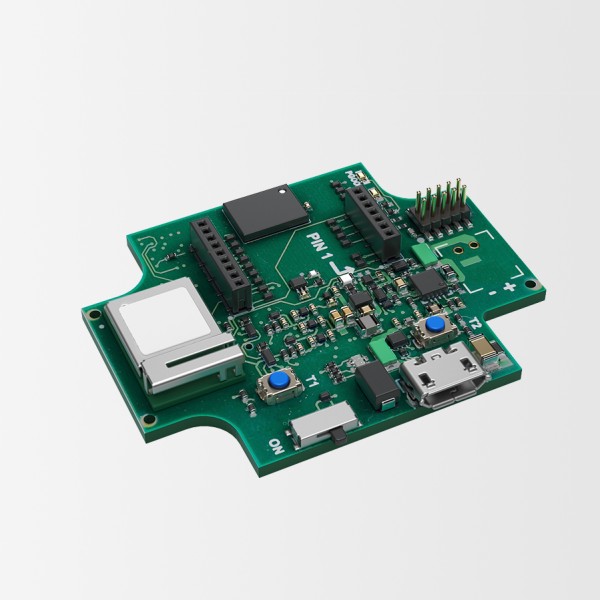

Topview of Bosch Sensortec's Application Board 3.0
CGI of Application Board 3.0

Technical data

Parameter Technical data
Parameter
Dimensions
Technical data
Length 37 mm x Width 47 mm x Height 7 mm
Parameter
Supply voltage
Technical data
5V DC USB, 3.7V Li-ion Battery
Parameter
Memory capacity (user data memory)
Technical data
256 KB RAM, 1MB internal flash, 2Gb external flash
Parameter
Communication
Technical data
BLE 5.0 / USB 2.0
Parameter
Bluetooth Low energy frequency band
Technical data
2.4GHz, 40 channels
Parameter
Typical conducted output power
Technical data
+0 dBm
Parameter
Radiated output power (EIRP)
Technical data
+2 dBm
